Iterative Gauss Newton reconstruction in 3D

Total Variation Regularization in Electrical Impedance Tomography Andrea Borsic, Brad M. Graham, Andy Adler, William R. B. Lionheart

% Create mesh with blocky objects $Id: total_variation01.m 3273 2012-06-30 18:00:35Z aadler $

% Simulation (forward model) 1024 elements
imdl= mk_common_model('d2c0',16);
fmdl= imdl.fwd_model;

% Identify block in centre
ctrs= interp_mesh(fmdl);
xe= ctrs(:,1); ye= ctrs(:,2);
re= sqrt(xe.^2+ye.^2);
block=(ye>0 & re<.69); % for 1024

sim_img= mk_image(fmdl,1);
v_homg= fwd_solve(sim_img);

sim_img.elem_data(block) = 1.1;
v_simu= fwd_solve(sim_img);

clf;
calc_colours('greylev',-.1); % white background
show_fem(sim_img)
print -r50 -dpng total_variation01a.png;

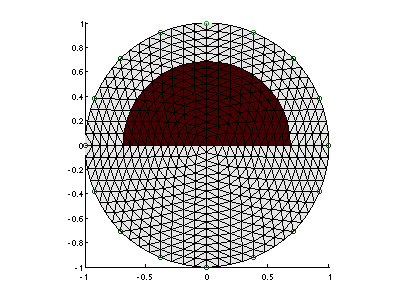

Figure: Pie slice shape that is to be reconstructed

GN reconstruction

% Compare 2D algorithms
% $Id: total_variation02.m 4839 2015-03-30 07:44:50Z aadler $

% Create Inverse Model
inv2d= eidors_obj('inv_model', 'EIT inverse');
inv2d.reconst_type= 'difference';
inv2d.jacobian_bkgnd.value= 1;

imb=  mk_common_model('c2c',16); %576 Elem model
inv2d.fwd_model= imb.fwd_model;
inv2d.fwd_model.np_fwd_solve.perm_sym= '{y}';

% Guass-Newton solvers
inv2d.solve=       @eidors_default;

% NOSER prior
inv2d.hyperparameter.value = .55;
inv2d.RtR_prior=   @prior_noser;

imgr= inv_solve( inv2d, v_homg, v_simu);

%Simulation image
subplot(221)
show_slices(sim_img)
subplot(223)
z=calc_slices(sim_img);
c=calc_colours(z); h=mesh(z,c);
set(h, 'CDataMapping', 'direct' );
view(173,34);
set(gca,{'XLim','YLim','ZLim','XTickLabel','YTickLabel'}, ...
        {[1 64],[1 64],[0.9,1.1],[],[]})

%Reconstructed image
subplot(222)
show_slices(imgr)
subplot(224)
z=calc_slices(imgr);
c=calc_colours(z); h=mesh(z,c);
set(h, 'CDataMapping', 'direct' );
view(173,34);
set(gca,{'XLim','YLim','ZLim','XTickLabel','YTickLabel'}, ...
        {[1 64],[1 64],[-0.1,0.1],[],[]})

print -r100 -dpng total_variation02a.png;

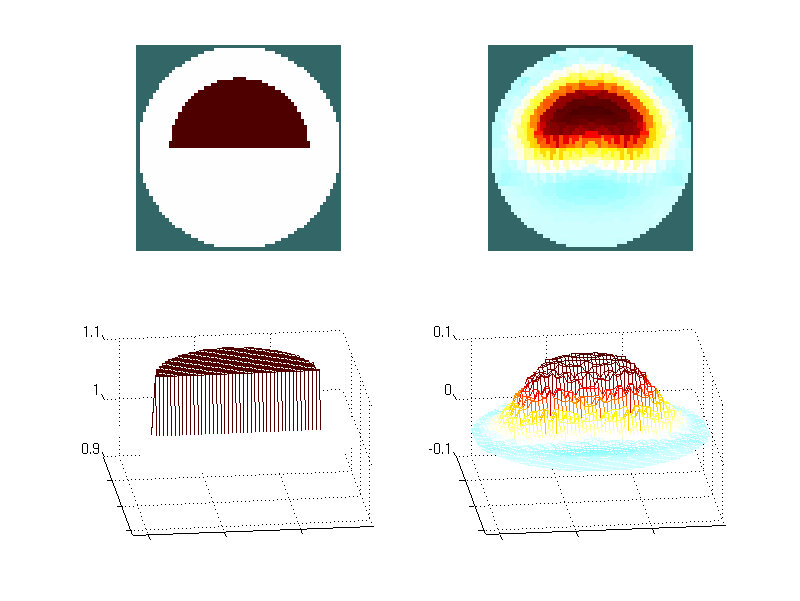

Figure: Simulation image (left) and GN reconstructed image (right) Gauss-Newton (2-norm) reconstructions are not very successful for this shape. Note: The 'sliver' of background shown on the meshes at right is a rendering bug in matlab 6.5. It does not show up in the matlab window.

TV reconstruction

We outline the properties of the TV functional in the next section, to motivate its use as a regularization penalty term and to understand the nu- merical difficulties associated with it. The use of the TV functional leads in fact to the formulation of the inverse problem as a minimization of a non-differentiable function. Application of traditional minimization techniques (Steepest Descent Method, Newton Method) has proven to be inefficient [Dobson, Santosa, 1994][Borsic, 2002]. Recent developments in non-smooth optimization (Primal Dual-Interior Point Methods) have brought the means of dealing with the minimization problem efficiently. The performance of this algorithm with respect to traditional smooth algorithms is the subject of this paper.

% TV Solutions % $Id: total_variation03.m 3428 2012-07-02 20:56:41Z bgrychtol $

% Create TV Inverse Model
invtv= eidors_obj('inv_model', 'EIT inverse');
invtv.reconst_type= 'difference';
invtv.jacobian_bkgnd.value= 1;

invtv.hyperparameter.value = 1e-3;
invtv.solve=       @inv_solve_TV_pdipm;
invtv.R_prior=     @prior_TV;
invtv.parameters.term_tolerance= 1e-3;
invtv.parameters.keep_iterations= 0;

invtv.fwd_model= inv2d.fwd_model;

invtv.fwd_model = mdl_normalize(invtv.fwd_model, 1);


maxiters= [1,3,6,15];
for i= 1:length(maxiters)
   invtv.parameters.max_iterations= maxiters(i);
   imgtv= inv_solve( invtv, v_homg, v_simu);
   imgtv.calc_colours.ref_level=0;

   %Reconstructed image
   subplot(2,length(maxiters),i);
   show_slices(imgtv)
   subplot(2,length(maxiters),i+length(maxiters));
   z=calc_slices(imgtv);
   c=calc_colours(z); h=mesh(z,c);
   set(h, 'CDataMapping', 'direct' );

   title(sprintf('TV iters=%d',maxiters(i)))
   view(173,34);
   set(gca,{'XLim','YLim','ZLim','XTickLabel','YTickLabel'}, ...
           {[1 64],[1 64],[-0.02,0.1],[],[]})
end

print -r150 -dpng total_variation03a.png;

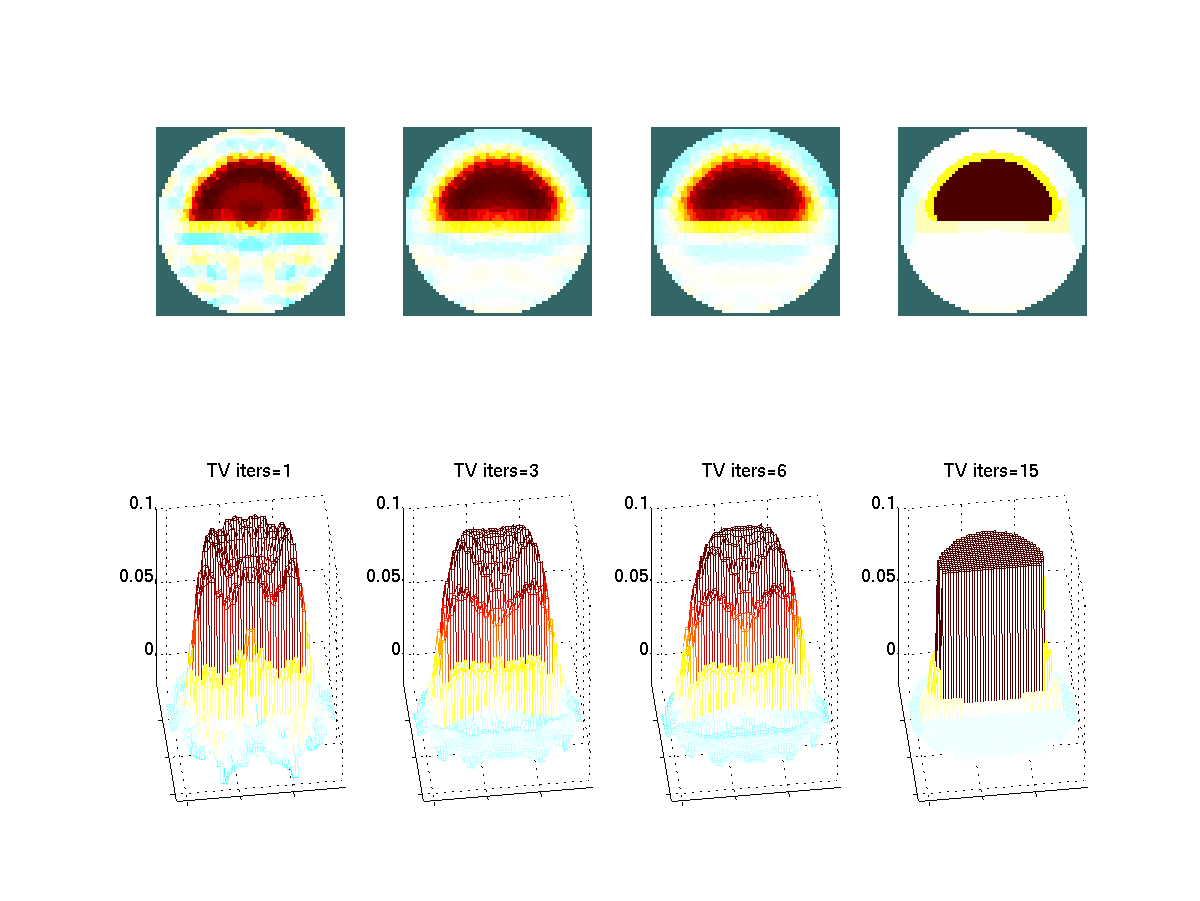

Figure: Total Variation reconstructions as a function of the number of iterations. From left to right iterations are: 1,3,6,8

TV reconstruction vs iteration

% TV Solutions % $Id: total_variation04.m 4839 2015-03-30 07:44:50Z aadler $

% Create TV Inverse Model
invtv= eidors_obj('inv_model', 'EIT inverse');
invtv.reconst_type= 'difference';
invtv.jacobian_bkgnd.value= 1;

invtv.hyperparameter.value = .03;
invtv.solve=       @inv_solve_TV_pdipm;
invtv.R_prior=     @prior_TV;
invtv.parameters.term_tolerance= 1e-3;
invtv.parameters.keep_iterations= 1;

invtv.fwd_model= inv2d.fwd_model;

invtv.parameters.max_iterations= 20;
imgtv= inv_solve( invtv, v_homg, v_simu);

clf;
show_slices(imgtv)
print -r100 -dpng total_variation04a.png;

imgs= calc_slices(imgtv);
idx = [1,3,6,10,20];

subplot(211);
plot(squeeze(imgs(:,32,[idx])));
axis([1 64 -0.04 0.12]); set(gca,'XTickLabel',[]);
 legend('1','3','6','10','20');

subplot(212);
plot(squeeze(imgs(32,:,[idx])));
axis([1 64 -0.04 0.12]); set(gca,'XTickLabel',[]);

print -r75 -dpng total_variation04b.png;

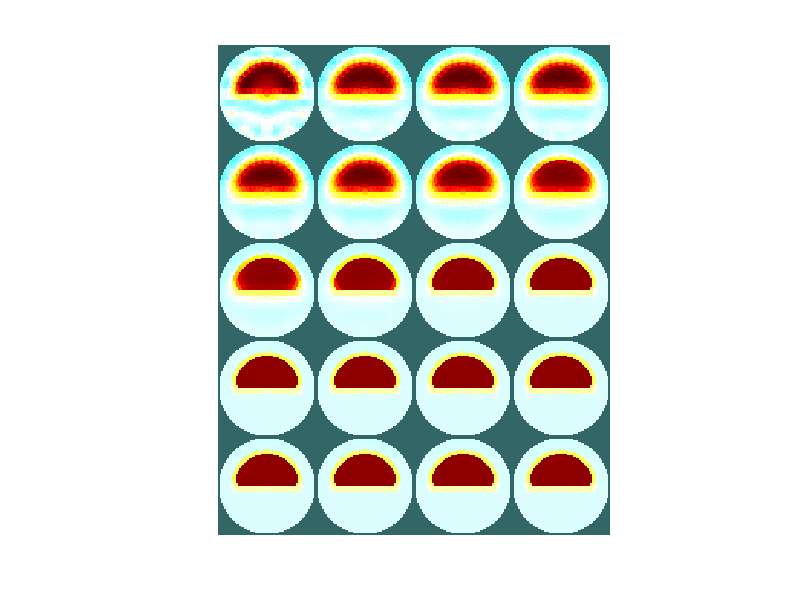

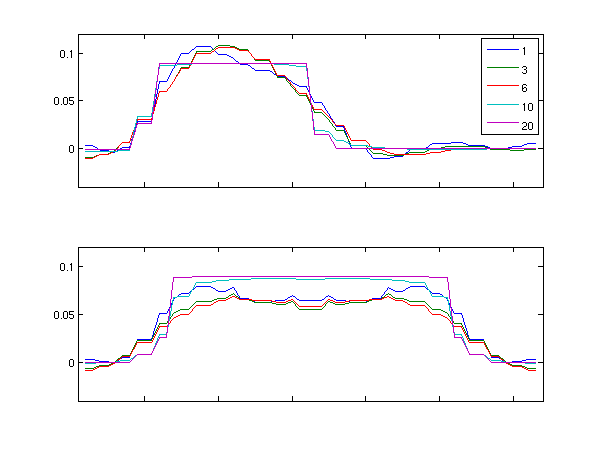

Figure: Left Total Variation reconstructions for iterations 1 to 20 (from left to right, top to bottom) Right Slices through the conductivity distribution vs iteration number. Top vertical centre cut, Bottom horizontal centre cut,
