News

This page is a list of updates, discussions, and ideas for enhancements to the EIDORS package.

  • 31 December 2019
    EIDORS Version 3.10 release

    Blobby the walrus is proud to announce the release of EIDORS version 3.10, available at www.eidors.org, and DOI:10.5281/zenodo.3247168. This is primarily a bug fixing release but it includes

    • New electrode models to better support internal electrodes
    • Temporal filtering
    • Improved octave support
    • Datafile utilities and improved fileformat support
    • Breath-analysis tools

  • 30 June 2019
    EIDORS Workshop at EIT 2019

    Time: 14h00−15h00, Sainsbury Wellcome Centre, London Code from workshop:
       imdl = mk_common_model('b2c2',16);
   fmdl = imdl.fwd_model;
   img = mk_image(fmdl,1);
subplot(322);
   img.fwd_model.stimulation = stim_meas_list( ...
      [1,2,3,4],16);
   img.fwd_solve.get_all_meas = true;
   vh = fwd_solve(img);

   imgv = rmfield(img,'elem_data');
   imgv.node_data = vh.volt;
   show_fem(imgv,[0,1]);

   [stim,msel] = mk_stim_patterns( ...
        16,1,[0,1],[0,1],{'no_meas_current'},1);
   img.fwd_model.stimulation = stim;
   img.fwd_model.meas_select = msel;
   vh = fwd_solve(img);
   img.elem_data(40) = 1.5;
   vi = fwd_solve(img);
subplot(321); show_fem(img,[0,1,1]);

subplot(323);
   plot([vh.meas,vi.meas]);

   imdl = select_imdl(img.fwd_model, {'Basic GN dif'});
subplot(324);
   imdl.hyperparameter.value = 1e-3;
   imgr = inv_solve(imdl, vh, vi);
   show_fem(imgr);


load montreal_data_1995.mat
vv = zc_demo3;
   imdl.hyperparameter.value = 3e-2;
   imgr = inv_solve(imdl, vv(:,1), vv(:,3:50));
subplot(325);
imgr.show_slices.img_cols = 5;
show_slices(imgr);

J = calc_jacobian( img);
Jdvol = J(4,:)'./get_elem_volume(img);
img.elem_data = Jdvol
subplot(326); show_fem(img);
return

clf;
for i=1:208
Jdvol = J(i,:)'./get_elem_volume(img);
img.elem_data = Jdvol
show_fem(img);
pause
end

  • 10 June 2018
    EIDORS Workshop at EIT 2018

    Time: 14h00−17h00, Sanderson Building, Kings Buildings campus, University of Edinburgh.

    Synopsis: The EIDORS workshop is for beginners and more advanced users of the EIDORS.org software. We will begin by helping everyone to install and use the software; we will then have a short presentation on the software and review its use for forward modelling and inverse solutions. Next we will present some example cases or solve application examples from workshop attendees. Workshop tutorial:
    Instructions for Windows users
    1. Create a directory C:\path\to\tutorial
    2. Download these files and unzip into the directory
    3. Start Matlab
    4. In matlab, do
      • cd H:/tutorial/eidors35rc1 cd C:\path\to\tutorial\eidors-v3.9.1-ng\eidors
      • startup
      • compare_2d_algs(1) %(this tests if eidors is working)
      • show_fem(ng_mk_cyl_models(3,[0],[])) %(this tests if netgen is working)
    Try a few EIDORS tutorials to see how eidors works. I recommend:
    1. EIDORS Basics
    2. Absolute and difference solvers
    3. Lung injury images
    4. Netgen FEM models
    5. GREIT
    Challenge problem:
    1. Create a 3D elliptical cylinder with 16 circular electrodes (see here)
      fmdl= ng_mk_ellip_models([1,1.2,0.8],[16,0.5],[0.1]); show_fem(fmdl);
    2. Put a ball into the elliptical cylinder
      extra={'ball','solid ball = sphere(0.5,0.3,0.5;0.1);'};
      fmdl= ng_mk_ellip_models([1,1.2,0.8],[16,0.5],[0.1],extra);       show_fem(fmdl);
    3. Put two balls into the elliptical cylinder
      extra={'ball','solid ball = sphere(0.5,0.3,0.5;0.1) or sphere(-0.5,0.3,0.5;0.1);'};
      fmdl= ng_mk_ellip_models([1,1.2,0.8],[16,0.5],[0.1],extra);       show_fem(fmdl);
    4. Set the model to use adjacent current patterns
      stim = mk_stim_patterns(16,1,[0,1],[0,1],{}); fmdl.stimulation = stim;
    5. Simulate homogeneous voltages (background conductivity = 0.5);
      img = mk_image(fmdl, 0.5); vh = fwd_solve(img);
      show_fem(img);
    6. Simulate inhomogeneous voltages (ball conductivity = 1.0);
      img.elem_data(fmdl.mat_idx{2})= 1.0; vi = fwd_solve(img);
      show_fem(img);
    7. Show slices through voltage pattern
      img.fwd_solve.get_all_meas = 1; vi = fwd_solve(img); imgh = rmfield(img,'elem_data'); imgh.node_data = vi.volt(:,1);
      show_slices(imgh,[[inf,inf,0.3];[inf,inf,0.35]]);
    8. Show a Gauss-Newton (GN) inverse in 3D
      imdl = select_imdl(fmdl, {'Basic GN dif'}); imdl.hyperparameter.value = 1e-5; img= inv_solve(imdl,vh,vi);
      show_3d_slices(img);
    9. Show a Gauss-Newton (GN) inverse in 2D using a coarse-to-fine map
      fmdl2d = ng_mk_ellip_models([0,1.2,0.8,.1],[],[]); fmdl.coarse2fine = mk_coarse_fine_mapping(fmdl,fmdl2d); imdl = select_imdl(fmdl, {'Basic GN dif'}); imdl.rec_model = fmdl2d; imdl.hyperparameter.value = 1e-4; img= inv_solve(imdl,vh,vi);
      show_slices(img);
    10. Create a GREIT model for the ellipse (see here)
      opt.noise_figure = 0.5; fmdl.normalize_measurements = 0; imgh = mk_image(mdl_normalize(fmdl,1),1.0);; imdl = mk_GREIT_model(imgh, 0.25, [], opt); img= inv_solve(imdl,vh,vi); show_fem(img);

  • 1 June 2018
    EIDORS Version 3.9.1 release

    Blobby the walrus is proud to announce the release of EIDORS version 3.9.1, available at www.eidors.org, and DOI:10.5281/zenodo.1257670. This is primarily a bug fixing release but it includes

    • Improved Support for GREIT in 3D
    • Improved Geophysical models
    • Improved absolute solvers
    • Models with internal electrodes
    • New tutorials
    • Improved solvers

  • 21 June 2017
    EIDORS Version 3.9 release

    Blobby the walrus is proud to announce the release of EIDORS version 3.9, available at www.eidors.org, and DOI:10.5281/zenodo.583266 Some of the many new features are:

    • Faster forward solve times for real conductivity distributions
    • Improved support for GREIT reconstructions in 3D
    • New hyperparameter selection approaches
    • Interface to Hansen's "Regularization Toolbox"
    • Gmsh-based human 3D model interface
    • Correction of artefacts caused by low frame rates
    • Improved support for mixed point and CEM electrode models
    • Support for 2½D solvers (including a rank-1 2½D movement Jacobian)
    • Forward solve supporting model reduction (i.e. efficient precalculation of out-of-field regions)
    • Improved testing framework esp. for core solver algs
    • Improved support for geophysical FEM models
    • Improved support for Octave
    • Updated ability to load recent device file formats including auxiliary data (Dräger and Swisstom formats)
    • Expanded shape library
    While proud of the great things EIDORS can now do, Blobby is sad to note that the Mathworks is making Matlab worse faster than he can make EIDORS better. While in the past it was possible to support a decade of Matlab versions, we can now only support 2015−2017. In the limit, as the quality of Matlab tends to zero, and it does not appear easy to make an infinite-quality EIDORS to compensate.

  • 21 June 2017
    Code developed at the workshop.
    EIDORS Workshop at EIT 2017

    Time 13h00−17h00, Location: 210 MacLean Engineering Science Center, Darmouth

    Synopsis: The EIDORS workshop is for beginners and more advanced users of the EIDORS.org software. We will begin by helping everyone to install and use the software; we will then have a short presentation on the software and review its use for forward modelling and inverse solutions. Next we will present some example cases or solve application examples from workshop attendees.

  • 1 June 2015
    EIDORS Workshop at EIT 2015

    For those attending the EIDORS workshop, meet at Microcity building MCB1-283

    Bring a laptop computer with the following software installed

    1. Matlab (version ≥7.6, 2008a),
    2. Netgen Mesher (version 5.0 or ≥5.2, not 5.1)
    3. Tortoise SVN
    Code developed at the workshop

  • 12 May 2015
    EIDORS Version 3.8 release

    Blobby the walrus is proud to announce the release of EIDORS version 3.8, available at www.eidors.org, and DOI:10.5281/zenodo.17559 Some of the many new features are:

    • improved (more stable) absolute solvers
    • 3D imaging using GREIT
    • Parameterization and arbitrary units
    • Speed optimizations
    • analytic geometry for dual meshes (coarse to fine)
    • improved netgen interface (more stable and flexible)
    • improved support for Dräger and Swisstom file formats
    • improved graphics
    Based on our test results, it appears that EIDORS is not using modern software engineering techniques. Unlike Windows 8, Android 5, Skype, and Matlab 8, which use (BS)² methodologies (Big, Slow, Bad, and Sloppy) to make each version more annoying and less useful than the previous, EIDORS 3.8 is "Not Worse™" than any previous version.

  • 22 April 2014
    EIDORS Workshop at EIT 2014

    For those at the EIDORS workshop, meet at 8:30 at the lobby of the Glenhouse hotel.

    Bring a laptop computer with the following software installed

    1. Matlab (version ≥7.0),
    2. Netgen Mesher
    3. Tortoise SVN

  • 29 May 2013
    EIDORS Version 3.7.1 release

    Blobby the walrus is happy to announce the release of EIDORS version 3.7.1. The software is available at www.eidors.org. This is a minor release, primarily fixing some small (but annoying) incompatibilities between different Matlab versions and operating systems. New features include:

    • Better handling of netgen and gmsh executables (Windows) − paths need only ever by provided once and can contain spaces.
    • Completely re-written print_convert function to produce beautiful cropped images with anti-aliasing without using ImageMagick
    • Citation requests when specific functions are called for the first time ( citeme). We hope this will encourage contributions.
    • A tutorial on Customizing EIDORS
    All tutorials have been updated to use the new features. The entire suite has been tested with the newest Matlab 2013a.

  • 22 April 2013
    EIDORS Version 3.7 release

    Blobby the walrus is ecstatic to announce the release of EIDORS version 3.7. The software is available at www.eidors.org. This release includes:

    Tutorials have been updated to use the new features.

  • 20 April 2013
    EIDORS Workshop
    For those at the EIDORS workshop, meet at 8:00 at the lobby of the Hotel am Pappenberg. If you miss us, we are at the Institut für Informatik (exactly at the Google maps pin).

    The workshop was a great success. We answered all outstanding questions and fixed the last bug ever ;-). To prove our success, we provide the following documents:

  • 18 April 2013
    Release Candidate for EIDORS 3.7
    We have a release candidate for eidors 3.7. Please download and test it.

  • 4 April 2013
    Plans: EIDORS workshop 20−21 April 2013
    The following topics have been requested for the workshop in Göttingen
    • constrained inverse problem for difference measurement
    • choosing appropriate regularization and computing hyperparameter value based on L-curve
    • absolute solvers
    • an overview of all the available functions and data structures in EIDORS.

  • 28 February 2013
    Announcing: EIDORS workshop 20−21 April 2013
    EIDORS Masterclass + tutorial session

    For those interested in learning more about EIDORS, we will be offering an EIDORS masterclass during the weekend before the opening of the ICEBI/EIT conference.

    Activities:

    • Tutorials on EIDORS software
    • Help implementing and debugging EIDORS-based EIT analysis
    • You can request specific topics of interest on the registration form (see below), which we will try to accommodate.
    Logistics:
    • Date: 20-21 April 2013
       − 20 April: EIDORS Tutorial Session
       − 21 April: EIDORS Masterclass
    • Time: 8h30 - 16h30
    • Location: University of Göttingen, Institute of Computer Science, Rooms -1.110 and -1.111
    • Meeting point: 8h00, Main entrance to the University Medical Center
    • Cost: The workshop is free to attend thanks to our sponsors
    • Accommodation: None provided, but one conveniently located hotel is Am Papenberg
    • Registration is mandatory ( REGISTER HERE)
    Important dates:
    • Register by: 1 April ( REGISTER HERE)
    • Suggest topics: 1 April
    • Final program: 15 April
    Organizers:
    • Andy Adler, Carleton University
    • Bartłomiej Grychtol, German Cancer Research Center
    • Günter Hahn, University of Göttingen
    • Bill Lionheart, University of Manchester
    Sponsors:
    • University of Göttingen
    • Swisstom AG

  • 17−20 November 2012:
    EIDORS code-a-thon
    Several EIDORS developers got together in Manchester, UK to work on adding new features and squashing old bugs. Priorities for the workshop were: 1) Geophysics 2) GREIT: target distributions and other defaults, electrode errors 3) Bill's c2f mapper 4) Electrode interface for netgen 2d models 5) place_elec_on_surf 6) move normalize_measurements from fwd_model to inv_model gracefully. Take care of calc_difference_data

  • 18 November 2012:
    EIDORS and "New Physics"
    We've decided on an infrastructure to allow "new physics" to be encoded onto a forward model. This will remain (mostly) backwards compatible, but will permit us to better support new problem formulations and multimodality physics. Examples of physics and their encoding are:
    PropertyEncoding
    Generic image
    information     		img.elem_data
    or
    img.node_data (no change)
    These fields will by default be interpreted as conductivity (by forward solvers)
    Conductivity img.conductivity.elem_data
    or
    img.conductivity.node_data (no change)
    Log conductivity img.log_conductivity.elem_data
    Movement img.conductivity.elem_data and
    img.movement.electrode_data or
    img.movement.node_data or
    Anisotropic
    Conductivity     		img.elem_data(elem#,img#,:,:)
    so each element has an individual tensor
    Functions to create anisotropic images from eigenfunctions will be provided

  • 7 July 2012:
    EIDORS Version 3.6 release

    Blobby the walrus is proud to release EIDORS version 3.6, available at www.eidors.org. This release includes:

    • improvements to advanced solvers (electrode movement reconstructions in 3D, 4D reconstruction)
    • better support for complex conductivity
    • experimental support for higher order FEM
    • improved 3D visualization
    • expanded support for meshing software and
    • several bug fixes and code speedups.
    Additionally, in order to make EIDORS easier to use and maintain, function names have been standardized to reflect their purpose. Several older functions have been deprecated (you may see several warnings when running older code).
    All Tutorials have been revised and new ones are available.
    The default solvers are now set at startup and centrally managed through the eidors_default function.
    Because of the many renamed functions, it will be increasingly difficult for the developers to answer questions pertaining to older versions of EIDORS, so we request all users to update.

  • 29 June − 3 July, 2012:
    EIDORS code-fest

    Several EIDORS developers will be getting together in Manchester to develop and release EIDORS 3.6. Planned features are:

    • Tutorials:
      • Restructure Tutorials: Fix warnings in tutorials Replace old approaches in tutorials (eidors_obj, add_noise)
      • New Tutorials: Movement solver tutorial Add recent contributions
    • Solvers: Absolute solvers
    • FEM Modelling: Add Gmsh code
    • Architecture: flag for desktop available. Fix eidors_msg add unit_tests to solvers
    • Tests Test for octave
    • Graphics Fix eidors colourbar

  • 8 June 2012:
    File renaming and file organization

    All files named after their authors are now deprecated (ie. aa_*, np_*) etc. We now have a consistent directory structure and naming convention for solvers, etc. Directories are now:

    • algorithms: treatment of data
    • arch: architecture specific
    • compatibility: include in path to support much older code
    • deprecated: files to support older code
    • examples: example code (in addition to tutorials)
    • external: imported code from external sources
    • graphics: graphics code
    • interface: read and write external data
    • meshing: interface to Netgen and other meshing
    • models: create FEM models
    • sample_data: included samples of data
    • solvers: forward and inverse solvers
      • solvers/forward:
      • solvers/inverse:
    • tests: test code (eventually all into unit tests)
    • tools: utility functions (cache, unit testing)

  • 14 July 2011:
    EIDORS Version 3.5 release

    Blobby the walrus is proud to release EIDORS version 3.5, available at www.eidors.org. This release includes new and enhanced reconstruction algorithms, expanded support for meshing software and EIT file formats as well as the usual bug fixes and code speedups. Functions can now be browsed online in a new interactive documentation browser . All Tutorials have been updated and new ones are available.

    New features since v3.4 include: Additional enhancements:
    • graphics enhancements
    • nodal resconstructions and display
    • image filtering options
    • improved octave support
    • increased memory efficiency
    • quick acces functions for common shapes (shape_library) and models (mk_library_model), see tutorial
    • programming utility functions
    • additional solvers (inv_solve_TSVD)
    • bug fixes and unit tests
    • improved support for dual model and FEM interpolation ( mk_c2f_circ_mapping, elem_select)
    • shape smoothing and interpolation functions ( fourier_fit, piece_poly_fit)
    • clean up unused and deprecated functions
    • calculate geometrical FEM properties (fix_model, linear_reorder)
    • caching to HDD of library FEM models
    • caching improvements (64 bit support)

  • 4 May 2011:
    EIDORS Tutorial @ EIT 2011 Conf
    www.sce.carleton.ca/~adler/eidors-tut/
    1. Create a directory H:\tutorial
    2. Download these files and unzip into the directory
    3. Start Matlab
    4. In matlab, do
      • cd H:/tutorial/eidors35rc1
      • startup
      • compare_2d_algs(1)
        (this tests if eidors is working)
      • show_fem(ng_mk_cyl_models(3,[0],[])) (this tests if netgen is working)
        You will need to add the path H:/tutorial/ngs44
    		Go to the EIDORS tutorials tutorial/tutorial.shtml

    Try a few tutorials to see how eidors works. I recommend:

    1. EIDORS Basics
    2. Absolute and difference solvers
    3. Lung injury images
    4. Netgen FEM models
    5. GREIT
    Challenge problem:
    1. Create a 3D elliptical cylinder with 16 circular electrodes (see here)
      fmdl= ng_mk_ellip_models([1,1.2,0.8],[16,0.5],[0.1]); show_fem(fmdl);
    2. Put a ball into the elliptical cylinder
      extra={'ball','solid ball = sphere(0.5,0.5,0.5;0.1);'};
      fmdl= ng_mk_ellip_models([1,1.2,0.8],[16,0.5],[0.1],extra);       show_fem(fmdl);
    3. Put two balls into the elliptical cylinder
      extra={'ball','solid ball = sphere(0.5,0.5,0.5;0.1) or sphere(0.5,-0.5,0.5;0.1);'};
      fmdl= ng_mk_ellip_models([1,1.2,0.8],[16,0.5],[0.1],extra);       show_fem(fmdl);
    4. Set the model to use adjacent current patterns
      stim = mk_stim_patterns(16,1,[0,1],[0,1],{}); fmdl.stimulation = stim;
    5. Simulate homogeneous voltages (background conductivity = 0.5);
      img = mk_image(fmdl, 0.5); vh = fwd_solve(img);
      show_fem(img);
    6. Simulate inhomogeneous voltages (ball conductivity = 1.0);
      img.elem_data(fmdl.mat_idx{2})= 1.0; vi = fwd_solve(img);
      show_fem(img);
    7. Reconstruct the image using GREITv1
      imdl= mk_common_gridmdl('GREITc1'); img= inv_solve(imdl,vh,vi);
      show_fem(img);
    8. Create a GREIT model for the ellipse (see here)
      opt.noise_figure = 0.5; opt.distr = 3; %other options are defaults
      fmdl.normalize_measurements = 0;
      imdl = mk_GREIT_model(mk_image(fmdl,0.5), 0.25, [], opt);
      img= inv_solve(imdl,vh,vi);       show_fem(img);
    9. Compare images for different stimulation patterns (see here)

  • 7 July 2010:
    Blobby the walrus is proud to release EIDORS version 3.4, available at www.eidors.org. This version incorporates bug fixes, automated tests and code speedups. New features since v3.3 include: a) new algorithms (PDIPM, GREIT, absolute solvers), b) improved interfaces to FEM generation (distmesh, netgen) c) improved repository with in vivo and phantom data, d) improved graphics and tutorials.

  • 20 Jun 2010:

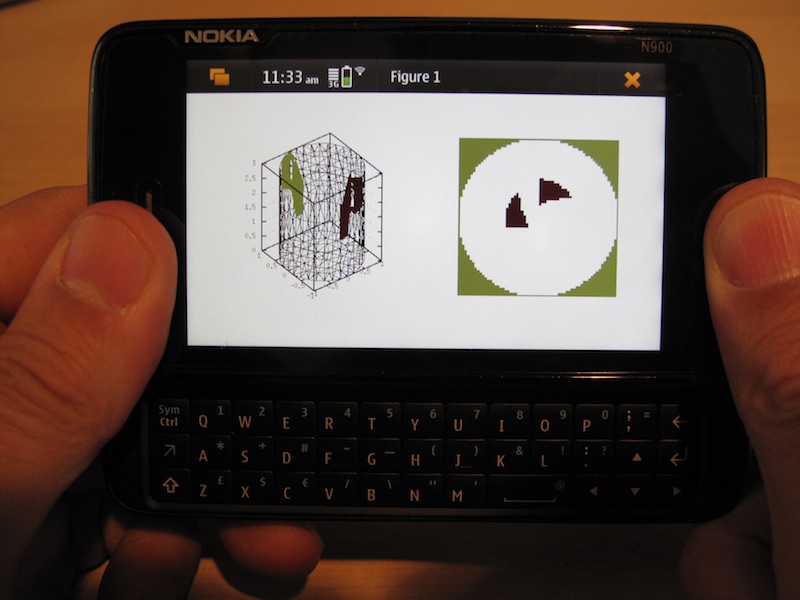

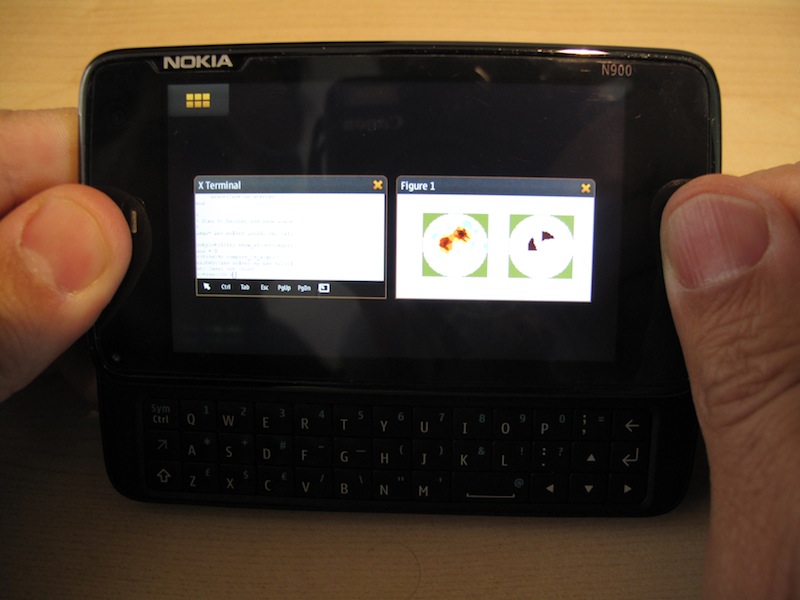

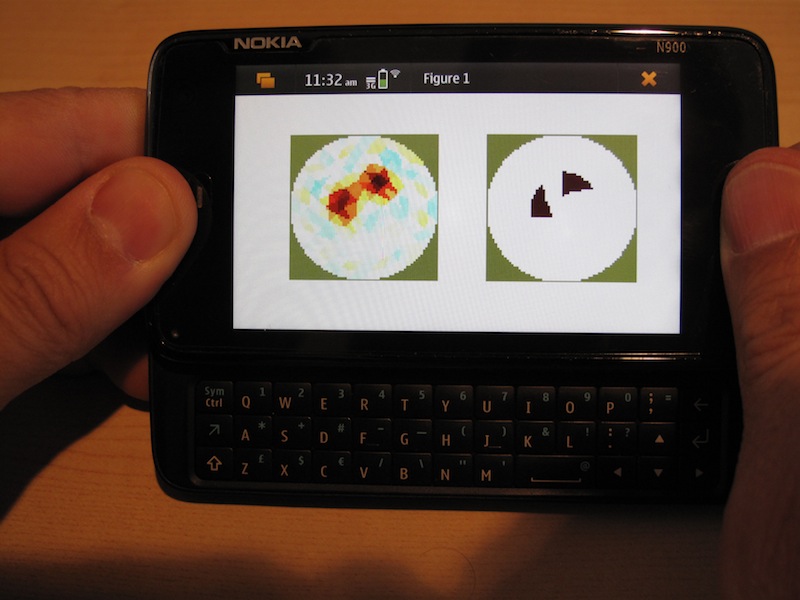

    You can now take EIDORS with you! Andrea Borsic and Andy Adler got EIDORS to run on the Nokia N900 mobile phone by installing Octave, Gnuplot, texinfo, and EIDORS to the phone. It is OK for 2D solvers (576 element inverse solutions in about 25 sec), but would be a little too slow for 3D problems.

  • 28 Mar 2010:
    Added lots of new tutorials. Including for nodal solvers, current patterns visualization, absolute solvers.

  • 23 Mar 2010:
    Added a new test infrastructure. Now each function (for which it has been implemented) has a 'UNIT_TEST' input. For example show_fem('UNIT_TEST');

  • 20 Feb 2010:
    Added data for Calibrated chest shaped targets in 2D circular tank with ACT 3 EIT system. Thanks to Jon Newell at Rensselaer Polytechnique Institute

  • 15 July 2009:
    The EIT-ventilation colourmap from Draegerwerk AG & Co. KGaA has been contributed to EIDORS for free commercial and non-commercial use.

  • 25−26 June 2009:
    Preliminary work to integrate the TOAST software with EIDORS. Work by Andy Adler, Martin Schweiger, Bill Lionheart and Simon Arridge to get a preliminary version of EIDORS and TOAST forward solvers working together.

  • 20−24 June 2009:
    EIDORS codefest in Whaley Bridge (UK). Bill Lionheart, Andy Adler, Andrea Borsic and Bartek Grychol got together to work on many different issues from conformal mapping and Total variation regularization integrating new data formats.

  • 23 July 2008:
    Blobby the EIDORS walrus is releasing version 3.3 (www.eidors.org). This version incorporates many changes, bug fixes and code speedups. Since v3.3RC1, we have added the Sheffield MKI backprojection algorithm (thanks to David Barber and Brian Brown), added tutorials and made several small bug fixes. New features since v3.3 include: a) interfaces to FEM generation (distmesh, netgen) and dual model solvers, b) new algorithms (total variation, electrode movement solver, temporal solvers), c) a data repository with in vivo and simulated data and models, d) faster algorithms with better caching, and e) improved graphics and extensive tutorials.

  • 16 June 2008:
    EIDORS tutorial as part of the EIT Conference 2008

  • 13 June 2008:
    Blobby the walrus has decided to release the first release candidate of EIDORS v3.3 (EIDORS-v3.3RC1) on Friday, the 13th.

    This version incorporates many changes, bug fixes and code speedups since v3.2 (Aug, 2007). New features include: a) interfaces to FEM generation (distmesh, netgen) and dual model solvers, b) new algorithms (total varia- tion, electrode movement solver, temporal solvers), c) a data repository with in vivo and simulated data and models, d) faster algorithms with better caching, and e) improved graphics and extensive tutorials.

  • 4 Mar 2008:
    New code to generally handle reconstructions with coarse and fine inverse models. This will take care of: 1) reconstructions on nodes rather than elements, 2) reconstructions to a raster output (such as GREIT), and 3) 2½D reconstructions.

  • 22 Feb 2008:
    Andy Adler, Bill Lionheart, Andrea Borsic met with Nick Polydorides at MIT for the week. We made progress on a number of fronts including reintegrating Nick's 2D version of his code and validating it against Andy's. We made a start in incorporating MCMC methods in EIDORS and worked on boundary shape. Validation of 3D codes against each other showed a bug that had crept in to the forward solver in algroithms/n_polydorides which caused an error of relative size 1e-5 under some circumstances. We also had the great pleasure of meeting Gilbert Strang who introduced us to distmesh, which we are now planning to include in EIDORS.

  • 24 Sep 2007:
    Tutorials to create netgen FEM models and simulation of moving objects in fine and coarse netgen meshes.

  • 30 Aug 2007:
    Blobby the walrus would like to announce version 3.2 of EIDORS.

    EIDORS Version 3.2 is a significant improvement on the previous versions. The number and quality of tutorials has been increased. Bugs that have been reported have been (mostly) fixed, and the software carefully tested. Like always, EIDORS aims to facilitate using, testing, and development of reconstruction algorithms and models for EIT and other soft field tomography technologies.

    New features include
    − New algorithms (Temporal reconstruction, Electrode movement)
    − Repository for contributed data
    − Faster algorithms (better CGLS, Jacobian code)
    − Extensive tutorial: http://eidors3d.sourceforge.net/tutorial/
    − Improved links to netgen to generate finite element models

    EIDORS version 3.2 is available for download here: http://prdownloads.sf.net/eidors3d/eidors-v3.2.zip. As always, users are encouraged to report and bugs to the EIDORS maintainers.

  • 24 Aug 2007:
    Andy Adler

    EIDORS v3.2 development. EIDORS has progressed significantly from the 3.1 release, and yet there has not been a new release. The only thing stopping us is a few bug fixes and a few remaining features. The following list is the fixes/features added preparing for 3.2.
    −Caching added to the m_3d_fields function in Nick Polydorides' code.
    −EIDORS is released under GPL 2 and 3. (ie It may be copied under the GPL 2 or GPL 3 terms)
    −Data repository formed for groups wishing to conribute data
    −Moved and renamed files
    −Fixed almost all the bugs in the bug list (with a few bugs posponed to v3.3)
    −New electrode movement code
    −Rewrote time solver
    −Lots more tutorials
    −Fixed caching bugs and added new priority scheme for cache

  • 27 Aug 2006:
    Andy Adler & Bill Lionheart

    EIDORS Tutorial. About 40 of us got together at Kyung Hee University, Korea to review the capabilities of the latest version of EIDORS. Later we got to play with the EIT systems developed by Eung-Je Woo and his students at the Impedance Imaging Research Center.

  • 22 Aug 2006:
    Andy Adler & Bill Lionheart

    Blobby the walrus would like to announce version 3.1 of EIDORS.

    EIDORS version 3.1 contains a considerable number of new features to facilitate using, testing, and development of reconstruction algorithms and models for EIT and other soft field tomography technologies.

    New features include
    − New algorithms (Total Variation, Kalman filtering)
    − Improved Matlab graphics
    − Faster algorithms (better CGLS, Jacobian code)
    − Extensive tutorial: http://eidors3d.sourceforge.net/tutorial/
    − Many more usage examples.
    − Improved links to netgen to generate finite element models
    − Bug fixes

    EIDORS version 3.1 is available for download here: http://prdownloads.sf.net/eidors3d/eidors-v3.1.zip. As always, users are encouraged to report and bugs to the EIDORS maintainers.

  • 17 Aug 2006:
    Andy Adler

    An online tutorial has been written. You can access it here

  • 28 July 2006:
    Andy Adler & Bill Lionheart

    There will be an EIDORS tutorial on 27 August in Seoul, Korea as part of the 7th EIT conference. The tutorial will be at Kyung Hee University (bus transportation provided from COEX conference centre)

  • 28 June 2006:
    Andy Adler

    Modified EIDORS web pages for changes to SourceForge.net's cvs servers.

  • 23 Jan 2006: EIDORS V3.1RC1 Released
    Andy Adler

    Blobby the walrus would like to announce the release of EIDORS-3.1RC1. This is the first release candidate for EIDORS 3.1. Users are encouraged to report and bugs to the EIDORS maintainers.

    EIDORS version 3.1 contains a considerable number of new features to facilitate writing of reconstruction algorithms and models for EIT and other soft field tomography technologies. New features include
    − New algorithms (Total Variation, Kalman filtering)
    − Faster algorithms (better CGLS, Jacobian code)
    − Many more usage examples.
    − Improved links to netgen to generate models

    As always, if your favourite feature is absent, or your least favourite bug is present, please make your comments to the authors

  • 29 Nov−9 Dec 2005: Workshop on EIDORS software, Manchester, UK
    Andy Adler & Bill Lionheart

    The following software has been implemented

    • New (faster) Jacobian Calculator by Manuch Soleimani
    • Total Variation based image reconstruction from code by Andrea Borsic
    • Modification (and generalization) of EIDORS methods to allow more generic regularization, and data for Kalman filtering
    • Kalman filtering for difference EIT
    • Improved software to integrate Netgen with EIDORS
    • Detailed FEM model of ball moving in a vortex in a tank. (See animated image)
    • New inverse algorithms
      −Truncated iteration (Morozov criterion)
      −CGLS (with efficient sparse matrix handling)
      −Coarse / Dense mesh solver (thank to David Stephenson)

  • 31 Oct 2005: EIDORS V3.0 Released.
    Andy Adler

  • 30 Oct 2005: Modifications to allow EIDORS to be used with octave. Some bugs remain with octave optimization functions, and with sparse solver code; however, it is expected that these issues will be dealt with soon.
    Andy Adler

  • 24 Oct 2005: Sample phantom data for cylindrical tank with 2D and 3D stimulations patterns contributed. examples/phantom_16elec_*
    Camille Gomez

  • 19 Oct 2005: The EIDORS project authors, as well as their pet Walrus, would like to announce release of EIDORS-3.0RC1. This is the first release candidate for EIDORS 3.0. Users are encouraged to report and bugs to the EIDORS maintainers.

    EIDORS version 3.0 contains a considerable number of new features to facilitate writing of reconstruction algorithms and models for EIT and other soft field tomography technologies. Features include
    − Multiple algorithm support.
    − "Pluggable" code base to facilitate user modifications
    − Automatic caching to improve performance
    − Many more usage examples.
    − Sample data and mesh generators
    − Integrated test code
    − Improved 3D graphics

    The EIDORS authors hope to provide a software infrastructure that will assist technology development and practical applications of these technologies. To quote the authors of perl, "We aim to make easy things easy and hard things possible".

    Andy Adler

  • 18 Oct 2005: Algorithms and code to illustrate Cheating with EIDORS. The goal is to illustrate potential pitfalls of this kind of numeric software, and to encourage people to avoid them.
    Andy Adler

  • 14 Sept 2005: Algorithms from EIDORS2D from Marko Vauhkonen have been included in the algorithms/mv_2001 directory.
    Andy Adler

  • 2 Sept 2005: 3D data from tank measurements contributed by Andrew Wilkinson and Bill Randall at U. Cape Town using their high speed Electrical Resistance Tomography equipment.

  • 6 June 2005: Paper on EIDORS for VI EIT Conference (London, UK)
    Andy Adler, Bill Lionheart

    Our paper on EIDORS is available here

  • 23 Feb 2005: Caching interface for EIDORS
    Andy Adler

    After thinking about how to implement caching for a while, I've finally implemented one approach. The idea is that each object must be 'hashed' to get an ID. If we calculate the image for data we've already seen, then we must be able to detect that fact.

    Some issues are:
    − We can't simply keep a pointer to previous variables. For example, the Jacobian is used many times. Each time it normally calculated for a homogeneous background, but the actual variable representing the background is different.
    − Cross-platform cross version support. We need to support (Unix + Windows) × (Matlab v6 + v7 + octave). Windows makes it difficult to 'shell' out to a helper program. The various software packages make Mex type functions a compatibility issue.
    − Matlab Mex file limitations make it difficult to get pointers to the raw data storage for variables.

    Design: The following design was chosen. In the eidors object constructor eidors_obj.m, and obj_id is calculated for each variable by saving it to disk, and then running the file through the SHA1 hash, and deleting the file. The mex file matrix_id.cpp is used to calculate the SHA1. Because the Matlab V6 file format puts a comment header with the save time in the first 125 bytes, it is necessary to begin the hash after that point.

    Questions:
    − Should the saved files be deleted? If not, it may be a nice way to improve overall performance. If files are kept, we need to user selected EIDORS_TMPDIR in which to put the files.
    − Not all cached data is useful. For example each measured data set will end up in the cache as currently implemented. One advantage of the current implementation, however, is the way that it can 'remember' if it has seen previous data without actually storing that data. This would allow user selection of which variables to cache.

  • 23 Nov. 2004: Bill Lionheart
    Umer Zeeshan Ijaz <umer@cheju.ac.kr> from Korea has kindly contributed some code to help us find our electrodes in a netgen mesh.
    I have uploaded the code to the cvs on sf.net http://eidors3d.sourceforge.net/
    You should be able to see it on the browse cvs link (sometimes there is a delay) in the subdirectory meshing/netgen/ElectrodeInfo
    Several others have been working on the same problem and your contributions to automated electrode numbering are very welcome.

  • 26 July 2004: Design of a caching interface for EIDORS
    Andy Adler

    Here are some references of other efforts that use a caching architecture for Matlab projects:

  • 13 July 2004: EIDORS Developers strategic meeting.
    UMIST: Bill Lionheart (chair) (WL), Nick Polydorides (NP), David Stephenson (DS), John Davidson (JD), Sharon Mohanna (SM), UCL: Lior Horesh (LH), Richard Bayford (AB), U.OTTAWA: Andy Adler (AA), Yednek Asfaw (YA), Brad Graham (BG),

    Minutes:

    1. Everyone introduced themselves
    2. It was agreed by all that the code circulated for this meeting that was not yet released would be treated as confidential, as the authors needed a chance to publish papers on their work first. When ready the authors can contribute it to the eidors3d source tree on sourceforge.net either themselves or via one one of those registered as developers.
    3. Current work in EIT and with EIDORS software was discussed.
    4. Standard file formats.
      (AA) As we develop project we have a chance to set a standard.
      (RB) Kevin Boon suggested standard data format in Ankara. Confidential medical data, patient owns it. Community has to be seen to respect medical data (eg name prognosis.). Phantom data not an issue. Cant just send a data file. Issue about type of system. Collection protocol, dynamic range, data scaling. Electrode placement within error. In real data another level, may need to preprocess to data. Do we want EIDORS to be a teaching tool or a more advanced tool. Reverse is to say what syntax EIDORS needs.
      (RB) Image format. SPN, statistical parametric modelling. What is output format. VTK? 30 Images different freq. Need for comparison of data.
      (AA) Symantic difficulty, cond on vertices, elements, mapping to cut planes. So what is image? Rasterizing.
      (NP) Test set for others to compare. Dist with EIDORS.
      (RB) OT, see Martin Schweiger's web site at UCL. There is lots of error checking in TOAST. This can be an issue when trying to adapt the code to a different application.
      (AA) Defining a new standard would raise political issues. On the other hand, simply saying that "this is what you need to work with EIDORS" is easier.
      Action: AA -- consult OT people (HD). Check with RB for head, JLD for Process Tomography.
      Models meshes -- standard file formats. Can we use standard ones? Iges, EDS, Universal File Format, SLT (parametric surface). Mesh quality factors.
    5. (AA) API and plugable algorithms.
      Want to easily plug in new idea and compare with named reference algorithms. API written so this is easy but also safe.
      (RB) Grid algorithms, multiple self contained program, moduarity.
    6. CVS version on source forge.
      Octave compatible using if statements to bypass matlab graphics. Matlab OO. Not well written. Use structures instead
      − data - measurements, units, time, comment, electrode positions, current pattern
      − fwd_model - FEM, electrode posn. and models, excitation / meas. patterns, electrode models
      − inv_model - hyperparameters, pointers to code
      − image - image data, pointers to fwd_model, inv_model
      Basic Methods:
      − fwd_solve, inv_solve, jacobian, etc.
      − methods call alg. specific
      − 'centralized' caching to avoid repeat calcs Demo_real modified on CVS tree to do this.
      Discussion on packing un packing
      AA explained the "copy on write" issue in matlab. If you assign one big array to another it does not make a copy until you assign to the old one. Care is needed to avoid meemory bloat.
      DS and LH wondered whether this structure is appropriate for computationally intensive problems.
      Action LH and DS to look at AA's structures and see how it would suit their problems.
      (WL) Are we prepared to make big changes now, such as changes to variable names. Yes, as long as we carry the main users with us. Proposed major changes will be discussed on eidors-3d listserv.
    7. Research Issues (RB) Cross continent funding? Grid computing -- no real applications? "e-science community"
      Action: AA to check on Canadian position. RB To check on Grid stuff. Large computing, para'l computing.
      (AA) Testabilty big deal in software eng. Not much work on numerical algorithms. Inverse problems and medical imaging.
      (RB) Design for testability
      (BG) Has MS in CS , code inspection at RMC s/w for nuclear inspection.
      (WL) Testing of of IP software, so that one transparently avoids any cheating, whether or not intended, seems to be an interesting issue.
      (RB) VLSI, scalability testing. TOAST experience suggests problem we might encounter when code grows. Do we need built in test methods in EIDORS as it grows?
      (AA) This is a great multidisciplinary collaboration. We need good testing now.
      Repositary for standard data and Meshes, as well as standard algorithms.
    8. (RB) Suggested giving EIDORS a higher profile on eit.org.uk to encourage contributions. (WL) Suggested that we consolodate changes with the main groups actively developing EIDORS first.
    9. AOB: The meeting thanked the AG coordinators, the video conferencing went well apart from a loss of audio.
    10. It was agreed to schedule a meeting in about two months with London and Dartmouth both joining us over AG as well. Action: HD, RB, AA, WL to check availability of their AG nodes.

  • 4 July 2004:
    A. Adler

    EIDORS code now works with Octave as well as Matlab. Note that this is only for the numerical code; graphics are not supported. Also, since octave does not support some of the Cholesky and CG solvers, the solutions may be numerically less stable.

  • 24 June 2004: Idea
    A. Adler

    EIDORS needs a logo. Should we have a blurry blob? On the other hand, it also has to look 3D? And, it also has to look OK when compressed really small.

    If you have some thing you'd like to contribute, Bill Lionheart


  • 23 June 2004: Discussion
    W.R.B. Lionheart, A. Adler

    In order to further EIDORS development, we developed the following desirata for EIDORS software.

    • API design
      EIDORS needs a clean, well-encapsulated and easy to understand API. We do not feel that an object oriented API is particularly useful because: 1) the Matlab OO design is somewhat of a "hack" 2) such an OO interface would make portability to other languages less easy

    • Language portability
      EIDORS is primarily aimed at MATLAB. We would like to EIDORS to support Octave and Scilab, as far as possible. Currently, Octave and Scilab have the features needed by EIDORS (sparse matrices, 3D matrix support, etc.)

      In the core, it should be possible to have portability. However, Matlab graphics features are not supported in these languages. Our idea is therefore to separate the graphics functions from the core code. Graphics code would therefore be permitted to be language specific.

      Another desirable feature would be to support approaches to enhance execution speed: ie. C functions, multiprocessor support, etc. This is dealt with under plug-in algorithms

    • Platform portability
      EIDORS is intended to work on all platforms with support Matlab/Scilab/Octave. This means Unix/Windows/Mac OSX. In order to do this, we have the following rules:
      − No spaces in file names
      − The path separator is '/'
      − File names are lower case letters and numbers with optional underscores

    • Plugin algorithms
      Many users will want to use EIDORS infrastructure to test their own ideas. EIDORS should support plugging in such new algorithms or techniques.

      It is not obvious to us at this point exactly what features need to be added. Thus is is likely that some refactoring of the code will be required as we learn more about users needs. Please contact the authors with suggestions.

    • Reference algorithms
      One of the main goals of EIDORS is to allow people to compare their new fangled algorithms to those implemented by others. Unfortunately, the typical approach in this field has been to compare the new fangled to badly implement versions of others. Ideally, EIDORS will make it easy to do the comparison correctly, if desired.

      EIDORS should therefore offer: 1) use of the latest and greatest algorithms, and 2) use of specific algorithms corresponding to specific papers

    • Simple and transparent code-base
      EIDORS code is primarily aimed at numerical researchers. This means EIDORS should be:
      − simple. Code should be sufficiently small for an interested person to learn quite quickly
      − command line based. Code should expose it's capabilities and internal structure for inclusion into other algorithms. Graphic interface contributions will be accepted, but will be placed outside of the core.
      − modifiable. Many users will want to modify EIDORS to try their own ideas. This should be reasonably easy to do.
      −

    • Encourage contributions
      We want to find ways to encourage people to contibute:
      • Bug fixes
      • Sample data and meshes
      • Demo code and help files
      • new reconstruction algorithms
        also inproved forward solver (with higher order elements, BEM-FEM, etc.) modifications to algorithms (e.g. anisotropic conductivity)
      • and meta-algorithms (e.g. erroneous electrode detection techniques)
      • visualization (e.g. code to export to graphics packages such as mayavi)

    • Define subdirectories cleanly
      In order to separate algorithms and details.

    • File format
      It would be nice to define a EIT data file format that would facilitate interchange of data. We would be interested in receiving any suggestions about what such a data format would include.

      Things to include in the data file are
      − Time and date of each data measurement
      − Electrode locations / shape & size / contact impedance
      − Current & measurement patterns
      − The data itself
      − Sampling intervals
      − Description

      It would be convenient to put data into a structure.

    • Licence
      The licence for EIDORS is the GPL. Therefore, there are no problems with the following uses of EIDORS:
      • Selling EIT equipment with EIDORS on board, as long as the source code is available.
      • Using EIDORS with proprietary software like Matlab
      The following uses of EIDORS are barred by the GPL
      • Compiling EIDORS or a derived work and selling a system wihout access to both EIDORS and the software it is linked to.
      • Rewriting EIDORS in a different language and distributing it not under the GPL (eg. without source code)
      We are currently thinking about the scenario in which an EIT vendor provides EIDORS (including source) along with a proprietary add-on, such as a GUI. Email us if you have opinions on this issue.

Last Modified: $Date: 2019-12-31 15:45:45 -0500 (Tue, 31 Dec 2019) $ by $Author: aadler $
