Using Netgen to create elliptical EIDORS Models

Here are some examples of the varity of models which can be generated using the function: ng_mk_ellip_models.

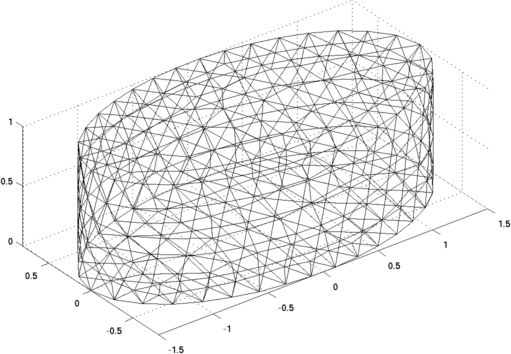

Simple 3D ellipse. Major, minor axes = [1.5, 0.8]. No electrodes

fmdl= ng_mk_ellip_models([1,1.5,0.8],[0],[]);
show_fem(fmdl);

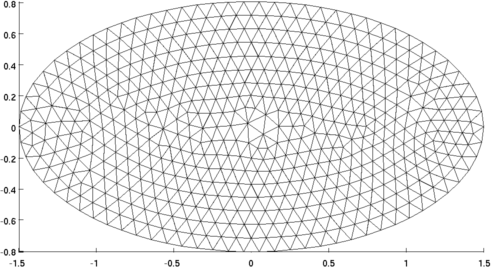

Simple 2D cylinder. Axes = [1.5,0.8]. Refined to 0.1

    fmdl= ng_mk_ellip_models([0,1.5,0.8,0.1],[],[]);
show_fem(fmdl);

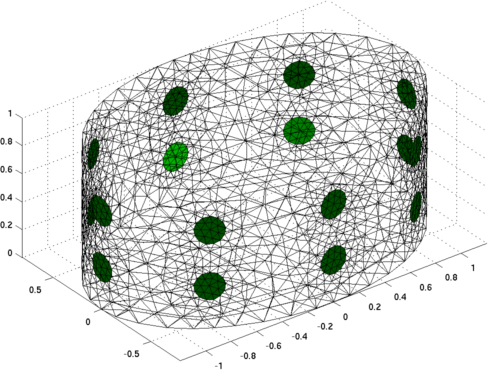

3D cylinder. Axes = [1.5,0.8]. 2 planes of 8 elecs with radius 0.1

    fmdl= ng_mk_ellip_models([1,1.2,0.8],[8,0.3,0.7],[0.1]);
show_fem(fmdl);

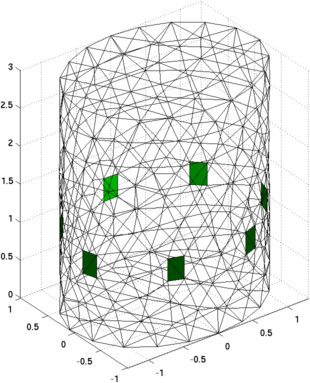

3D cylinder. Axes= [1.3,1] = 1. 7 rect elecs with no refinement

    fmdl= ng_mk_ellip_models([3,1.3],[7,1],[0.2,0.3]);
show_fem(fmdl);

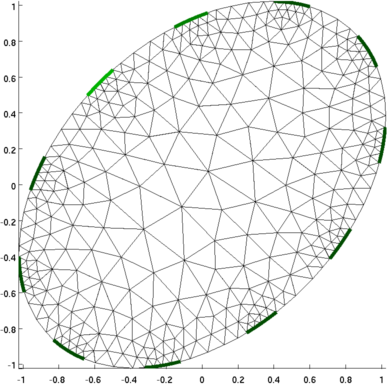

2D cylinder. Axes = [1.2,0.8]. 11 rect elecs with refinement. Rotated 45 degrees

    fmdl= ng_mk_ellip_models([0,1.2,0.8],[11],[0.2,0,0.05]);
th = 45* [2*pi/360];
fmdl.nodes = fmdl.nodes*[cos(th),sin(th);-sin(th),cos(th)];
show_fem(fmdl);

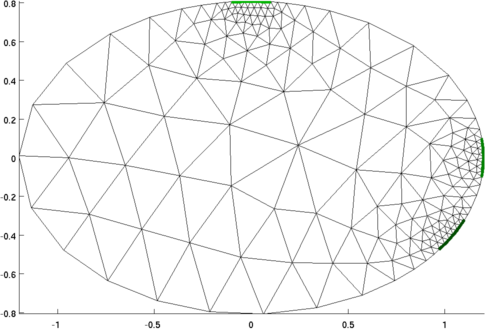

2D cylinder. elecs at 0, 90 and 120 degrees

    fmdl= ng_mk_ellip_models([0,1.2,0.8],[0;90;120],[0.2,0,0.03]);
show_fem(fmdl);

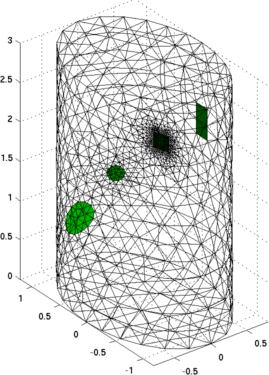

3D cylinder. Various elecs at 0, 30, 60, 90 in planes

    el_pos = [0,0.5;30,1;60,1.5;90,2.0];
    el_sz  = [0.2,0,0.1;0.1,0,0.05;0.2,0.2,0.02;0.2,0.4,0.5];
    fmdl= ng_mk_ellip_models([3,0.8,1.2],el_pos,el_sz);
show_fem(fmdl);

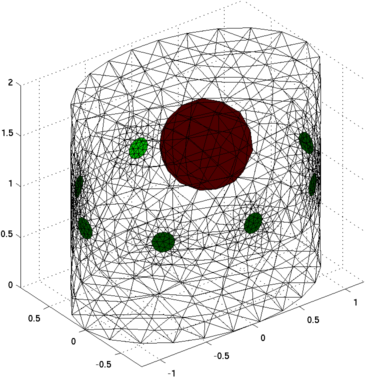

Simple 3D cylinder with a ball

    extra={'ball','solid ball = sphere(0.5,0.5,1;0.4);'};
    fmdl= ng_mk_ellip_models([2,1.2,0.8],[8,1],[0.1],extra);
    img= mk_image(fmdl, 1);
    img.elem_data(fmdl.mat_idx{2}) = 2;
show_fem(img);

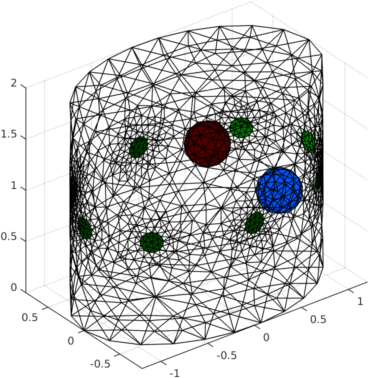

3D cylinder with a two separate balls

b1 = 'solid ball1= sphere(0.5, 0.5,1;0.2);';
b2 = 'solid ball2= sphere(0.5,-0.5,1;0.2);';
extra = {'ball1','ball2',[b1,b2]};
[fmdl,mat_idx]= ng_mk_ellip_models([2,1.2,0.8],[8,1],[0.1],extra);
img= mk_image(fmdl, 1);
img.elem_data(mat_idx{2}) = 2;
img.elem_data(mat_idx{3}) = 0.5;
show_fem(img);
